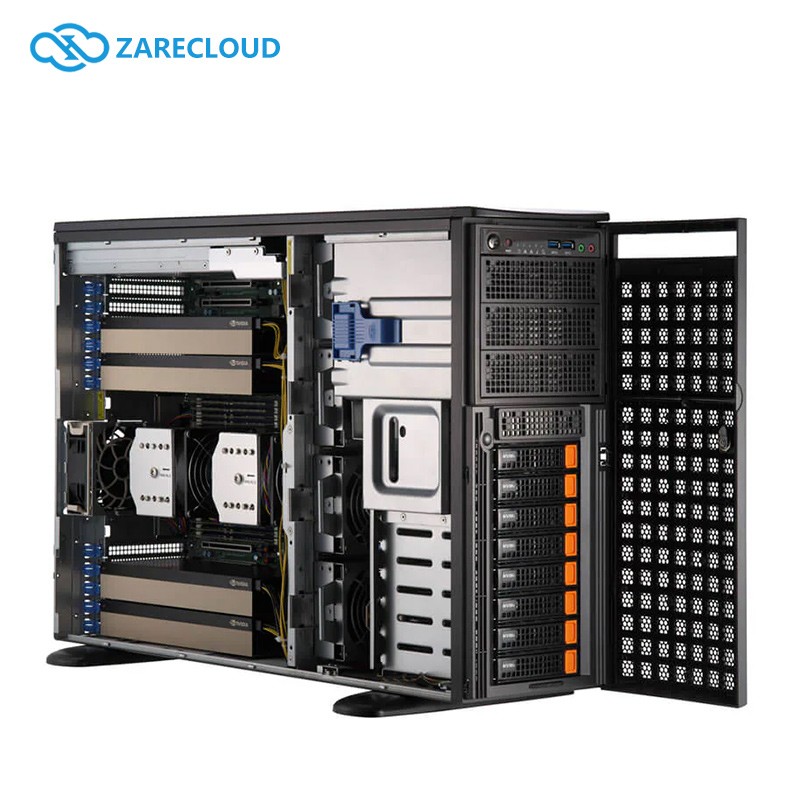

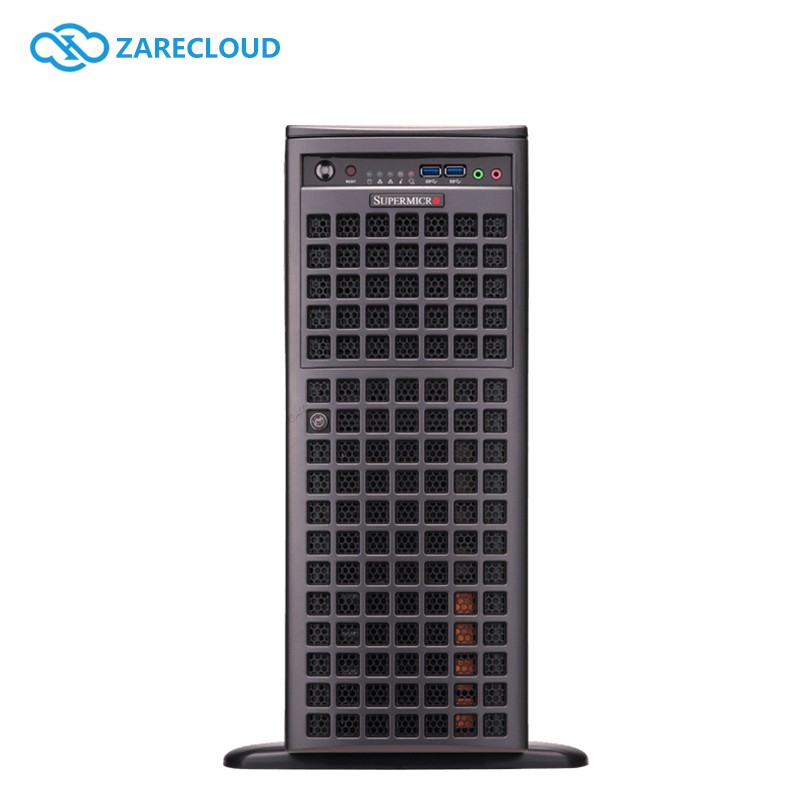

SYS-741GE-TNRT

Key Applications：
•High Performance Computing
•VDI
•AI/Deep Learning Training
•Media/Video Streaming
•Cloud Gaming
•Animation and Modeling
•Design & Visualization
•3D Rendering
•Diagnostic Imaging
•AI Training
Key Features:

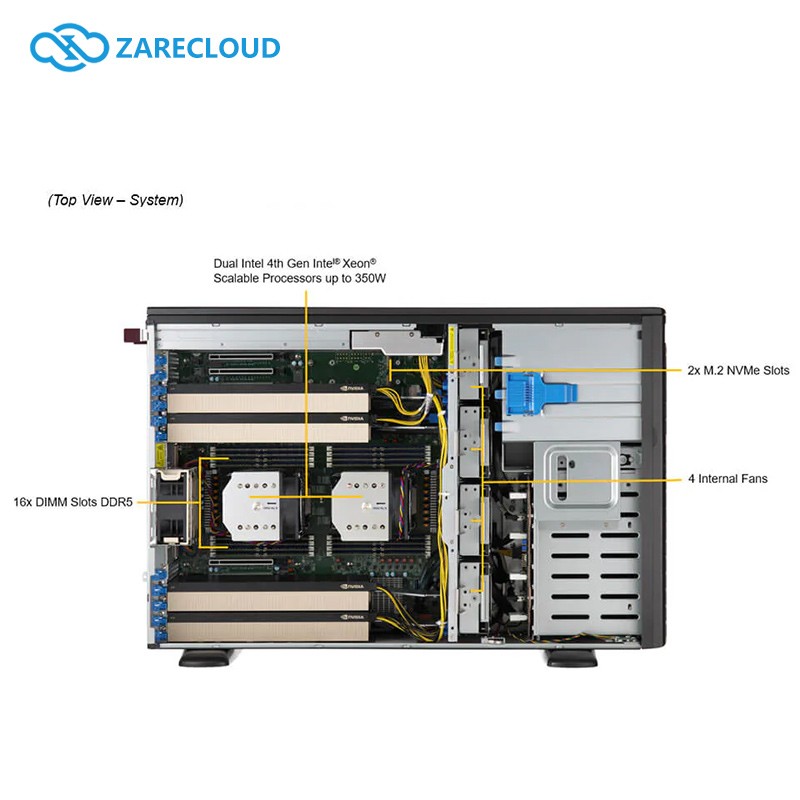

1.5th/4th Gen Intel® Xeon® Scalable processor support
2.16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
3.Up to 4x double width, full length GPUs

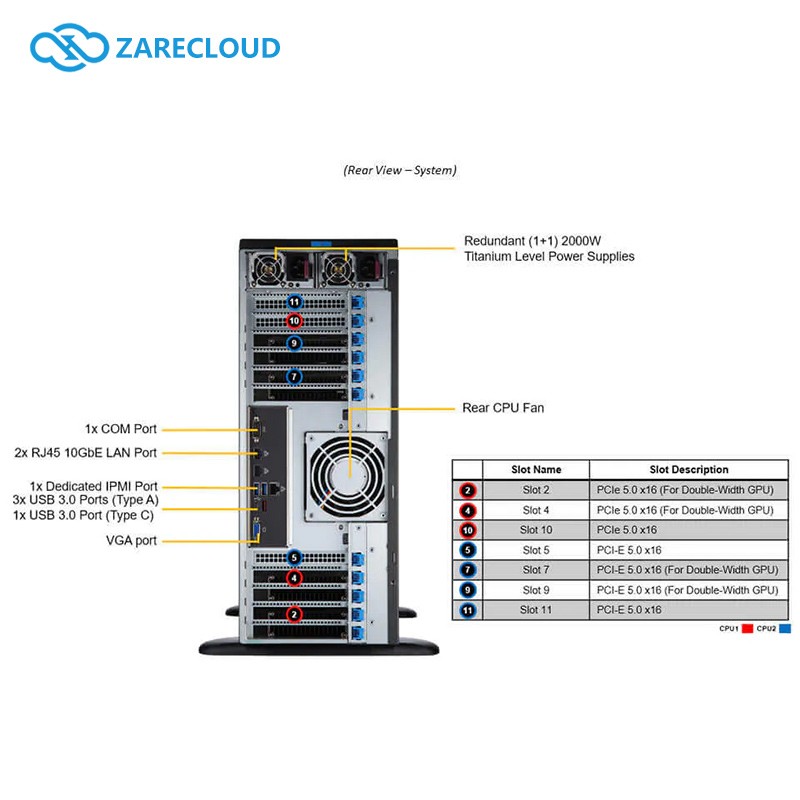

4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
4.Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
2x M.2 NVMe for boot drive only
Up to 8x NVMe drives (8 NVMe drives supported by default)
5.4 Removable heavy duty fans w/ Optimal Fan Speed Control
6.2x 2000W (1+1) Redundant Power Supplies, Titanium Level

邮箱

微信图片_20240302123942.png 微信图片_2.png 微信图片_3.png

Standard Parts (Parts Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X13DEG-QT CSE-749TS-R2K05BP	1 1	Super X13DEG-QT Motherboard Tower Chassis
Backplane	BPN-NVME5-749N-S8	1	8-port 3.5" LFF direct-attached HDD SAS4/NVMe Gen5 backplane for 4U SC749 Tower, all ports support 32GT/s NVMe Gen5 and/or 24Gb/s SAS4.,RoHS
Cable	CBL-MCIO-1240M5L	4	MCIOx8 (STR_pTab to LE), 40cm,30AWG,RoHS
	CBL-PWEX-1142B-40	1	MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
	CBL-SAST-1230-100	2	Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
	CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
	CBL-0160L	2	US POWER CORD 16AWG, PB FREE
	CBL-PWEX-1078	5	PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Parts	MCP-260-00180-0B	1	STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar
	MCP-290-74701-0B	1	Black plastic top cover for SC747
	MCP-290-74703-0B	1	fixed 3.5" dummy cover for SC747
	MCP-290-74709-0B	1	Plastic feet (2 pcs/set) for 4U tower chassis, black color
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
Heatsink / Retention	SNK-P0090AP4	2	4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
*Power Supply	PWS-2K05A-1R	2	1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
*Power Distributor	PDB-PT747-DSG	1	4U 4GPU support redundancy 2PWS up to 3KW output pass thr
*Fan	FAN-0199L4-1	1	92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
*Fan	FAN-0199L4-2	4	92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
*Front Bezel	MCP-210-74701-0B	1	SC747 plastic front bezel
*Drive Tray(s)	MCP-220-00073-0B	3	Black 5.25 drive tray w/o rail (SC747)
*Drive Tray(s)	MCP-220-00150-0B	8	NVMe Panetone 159C on Latch
*Front Panel	MCP-280-74702-0N	1	SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List
	Part Number	Qty	Description
DVD Kit	CBL-0044L •	1	SATA CABLE 57.5CM FLAT SS PBF.26AWG flat
	CBL-PWEX-0947Y-30	1	MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/pin,16AWG,RoHS
	DVM-TEAC-DVDRW24-HBT	1	BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE
	CBL-0082L •	1	Y SPLIT SATA POWER ADAPTER, PB FREE
Front Bezel	MCP-210-74703-0B	1	Front bezel cover (for 5.25" bay) for rackmount
GPU Kit	MCP-320-74901-NN	1	SC749 chassis rear external fan for passive GPU cooling kit
