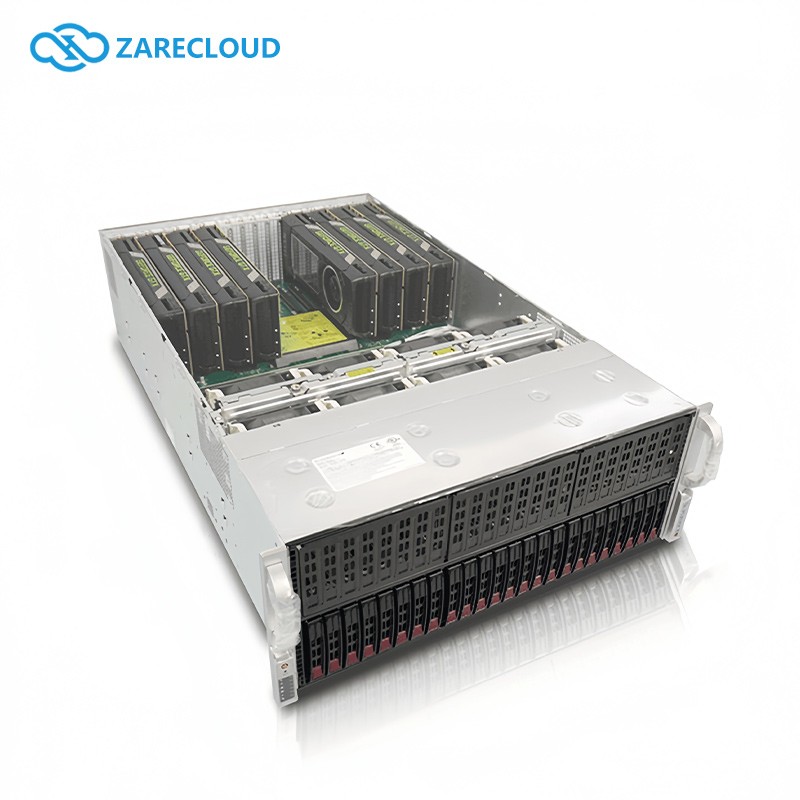

Key Applications
- AI/ML, Deep Learning Training and Inference
- High Performance Computing (HPC)
- Big Data Analytics
- Astrophysics Simulation
- Chemistry Simulation
- Research Laboratory/National Laboratory
Key Features

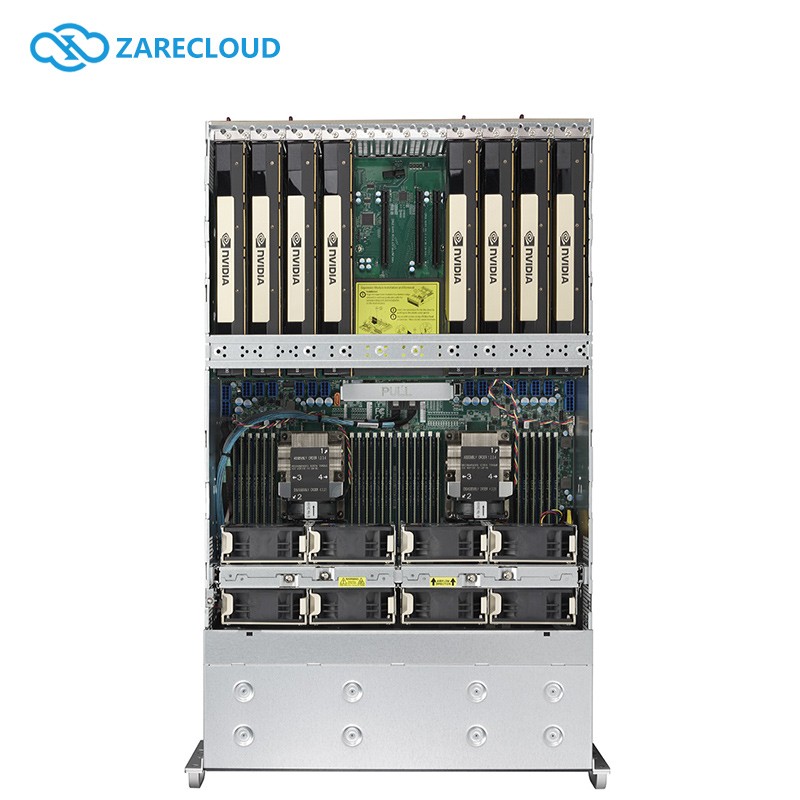

1. Single Root System for excellent
GPU peer to peer communication
with sufficient CPU to GPU throughput
2. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)‡
3. 24 DIMMs; up to 6TB 3DS ECC
DDR4-2933MHz† RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM††
4. 11 PCI-E 3.0 x16 (FH, FL) slots
1 PCI-E 3.0 x8 (FH, FL in x16 slot)

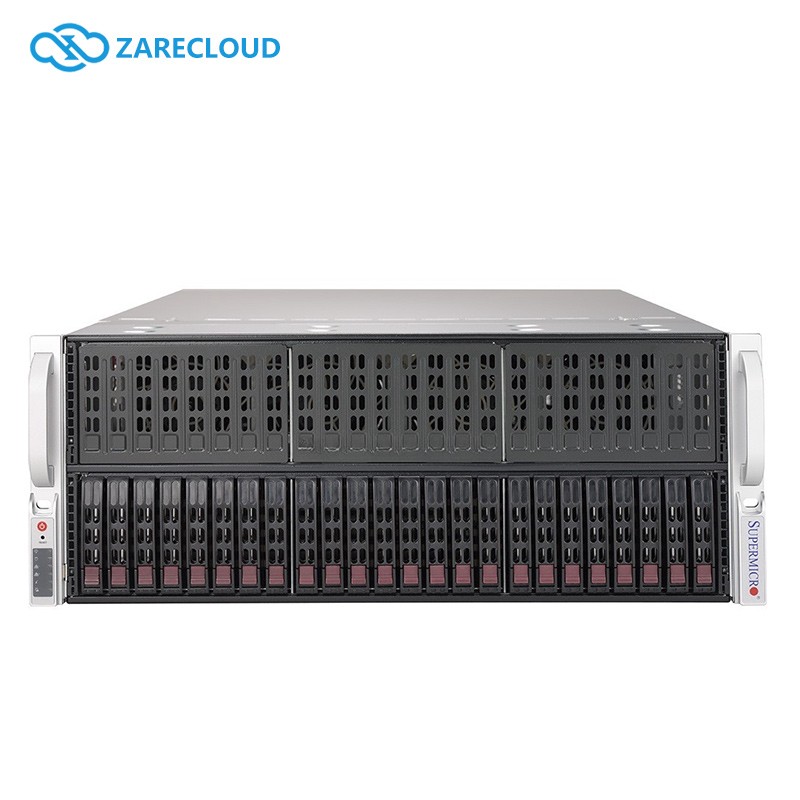

5. Up to 24 Hot-swap 2.5" drive bays;
8x 2.5" SATA drives supported
with included H/W, 2x 2.5" NVMe
drives supported with included H/W,
1 NVMe based M.2 SSD
6. 2x 10GBase-T LAN ports via Intel C622
7. 8 Hot-swap 92mm RPM cooling fans
8. 2000W (2+2) Redundant Power
Supplies Titanium Level (96%+)

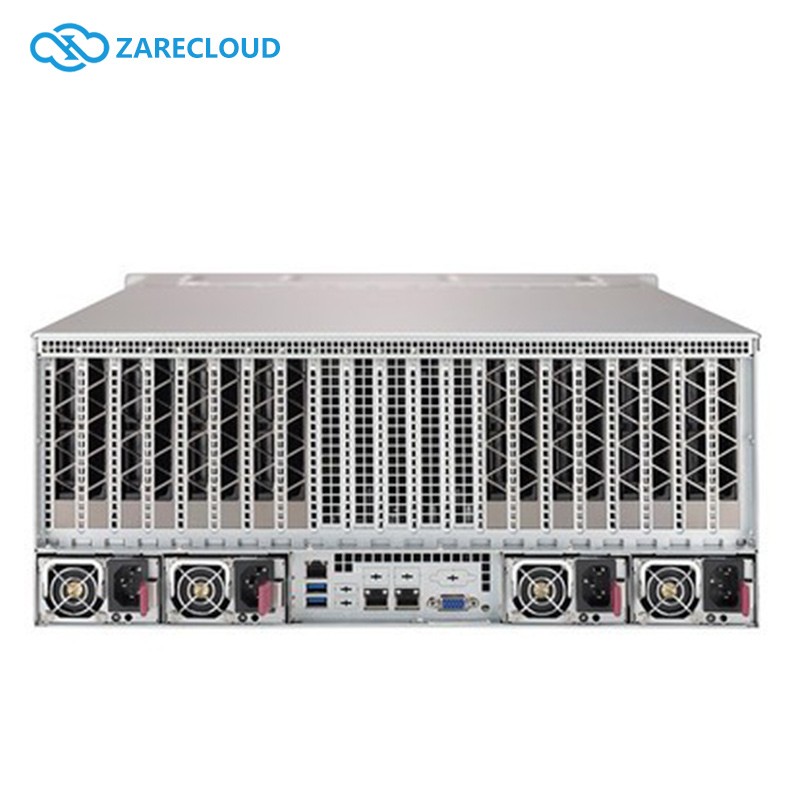

| Product SKUs | |
| SYS-4029GP-TRT2 | SuperServer 4029GP-TRT2 |
| Motherboard | |
| Super X11DPG-OT-CPU | |
| Processor | |
| CPU | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, | |
| 3 UPI up to 10.4GT/s | |
| Support CPU TDP 70-205W | |
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| GPU | |
| Supported GPUs | 10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) |
| NVIDIA V100, P40, T4, Quadro, RTX | |
| Supports both active and passive cooled GPUs | |
| Compatible GPU list | |
| CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch Single-Root |
| PCIe Root Architecture Chart | |
| GPU-GPU Interconnect | PCI-E, NVIDIA® NVLink™ Bridge (Optional) |
| System Memory | |
| Memory Capacity | 24 DIMM slots |
| Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM | |
| Supports Intel® Optane™ DCPMM†† | |
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro |
| †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | |
| Chipset | Intel® C622 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Network Controllers | Dual Port 10GbE from C622 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Graphics | ASPEED AST2500 BMC |
| Input / Output | |
| SATA | 8 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T LAN ports |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 4 USB 3.0 ports (rear) |
| Video | 1 VGA Connector |
| COM Port | 1 COM port (header) |
| System BIOS | |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management | |
| Software | Intel® Node Manager |
| IPMI 2.0 | |
| KVM with dedicated LAN | |
| SSM, SPM, SUM | |
| SuperDoctor® 5 | |
| Watchdog | |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| 4+1 Phase-switching voltage regulator | |
| FAN | Fans with tachometer monitoring |
| Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors | |
| Chassis | |
| Form Factor | 4U Rackmountable |
| Rackmount Kit (MCP-290-00057-0N) | |
| Model | CSE-418GTS-R4000BP2 |
| Dimensions | |
| Height | 7.0" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) |
| Gross Weight: 100 lbs (45.3 kg) | |
| Available Colors | Black |
| Drive Bays / Storage | |
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays |
| 8x 2.5" SATA supported natively | |
| 2x 2.5" NVMe supported natively | |
| M.2 | 1 NVMe based M.2 SSD |
| Form Factors: 2260, 2280, 22110 | |
| Expansion Slots | |
| PCI-Express | 11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 10 GPUs |
| 1 PCI-E 3.0 x8 (FH, FL, in x16) slot | |
| System Cooling | |
| Fans | 8 Hot-swap 92mm cooling fans |
| Power Supply | |
| 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 120Vac |
| 1800W: 200 – 220Vac | |
| 1980W: 220 – 230Vac | |
| 2000W: 230 – 240Vac | |
| 2000W: 200 – 240Vac (UL/CUL only) | |
| Dimension | 73.5 x 40 x 265 mm |
| (W x H x L) | |
| Input | 100-120Vac / 12.5-9.5A / 50-60Hz |
| 200-220Vac / 10-9.5A / 50-60Hz | |
| 220-230Vac / 10-9.8A / 50-60Hz | |
| 230-240Vac / 10-9.8A / 50-60Hz | |
| 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only) | |
| +12V | Max: 83.3A / Min: 0A (100-120Vac) |
| Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | |
| Max: 166.7A / Min: 0A (230-240Vac) | |
| Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only) | |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification |  Titanium Level |
| [ Test Report ] | |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
| 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: | |
| -40°C to 60°C (-40°F to 140°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) | |
| Parts List - (Items Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X11DPG-OT-CPU | 1 | Super X11DPG-OT-CPU Motherboard |
| MBD-X10DRG-O-PCIE | 1 | Super X10DRG-O-PCIE Motherboard | |
| CSE-418GTS-R4000BP2 | 1 | CSE-418GTS-R4000BP2 Chassis | |
| Backplane | BPN-SAS3-216A-N4 | 1 | 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | CBL-0449L | 2 | HDD power extension for X8OBN, special 8 pin to 4 HDD. 45cm. 18AWG |
| Cable 2 | CBL-PWEX-1028 | 8 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C |
| Cable 3 | CBL-SAST-0507-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG |
| Cable 4 | CBL-SAST-0972 | 2 | OcuLink V. 1.0 source to MiniSAS HD,INT,PCIe, 70CM,34AWG,RoH |
| Parts | MCP-130-41802-0B | 1 | Black plastic palm cover for X10DRG-O-PCIE |
| Riser Card | RSC-X9DRG-O | 4 | RSC-X9DRG-O |
| Heatsink / Retention | SNK-P0068APS4 | 2 | 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform |
| Power Supply | PWS-2K05A-1R | 4 | 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH |
| FAN 1 | FAN-0199L4 | 8 | 92x92x38 mm, 11.5K RPM, SC418G Middle Fan w/ Housing,RoHS/REACH,PBF |
| Rear Window | MCP-240-84802-0N | 1 | 21 slot rear window for SC418X |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| 0.5U LID | MCP-230-41803-0N | 1 | Top cover for GTX card support |
| 1U LID | MCP-230-41806-0N | 1 | Top cover for NVLINK BRIDGE support |
| 2.5" NVMe Drive Trays | MCP-220-00121-0B | 1 per drive | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock |
| MCP-220-00167-0B | Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less | ||
| GPU Dummy Tray | MCP-240-00096-0N | 1 | GPU / Add-on Card Dummy Assembly (2 Slots) |
| GPU Cables | CBL-PWEX-0665 | 1 per GPU*** | GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG. |
| CBL-PWEX-1017 | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG. | |
| CBL-PWEX-1040* | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG. | |
| CBL-PWEX-1028** | 1 per GPU | GPU power cable (for NVIDIA TESLA V100). 8pin FEMALE CPU BLUE to 8pin FEMALE CPU BLUE. 30cm 20AWG/16AWG. | |
| Note: | * Use with CBL-PWEX-1028 | ||
| ** 8 qty. included with each system | |||
| *** 2 qty. required for each MI25 | |||
| Storage Control Cards and Cables | AOC-S3008L-L8I2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10 |
| AOC-S3008L-L8E2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only | |
| AOC-S3108-H8IR2, 4, 8 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60 | |
| AOC-S3108L-H8IR-16DD4, 8 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane | |
| AOC-SAS3-9361-16I3, 5 | 1 | Broadcom 9361 STD LP 16 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. | |
| AOC-SAS3-9361-24I5, 6 | 1 | Broadcom 9361 STD LP 24 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. | |
| CBL-SAST-0531 | 2 | n/a | |
| BTR-TFM4G-LSI004187 | 1 | LSI Remote CVKit with DVFlash Module CVFM04 for 9361 and 9380 Controller Series | |
| BTR-TFM8G-LSICVM02 | 1 | LSI Supercap w/ 8GB CV + 24" cable for LSI S3108-H8IR. | |
| Optional installation kit: | |||
| - MCP-240-00127-0N | |||
| - BKT-BBU-BRACKET-05 | |||
| MCP-240-00127-0N | 1 | Remote Mounting Bracket for Supercap. Installs in 2.5" drive tray. | |
| BKT-BBU-BRACKET-05 | 1 | Remote Mounting Board for Supercap. Full Height mounting bracket. Low Profile mounting bracket also included. | |
| BPN-SAS3-216EL1 | 1 | SAS3 12Gb/s Single Expander Backplane with x24 2.5" SATA/SAS HDD/SSD. | |
| Note: | 2. Requires x2 CBL-SAST-0531 | ||
| 3. Requires x4 CBL-SAST-0531 | |||
| 4. Use BTR-TFM8G-LSICVM02 for Supercap | |||
| 5. Use BTR-TFM4G-LSI00418 for Cache Vault | |||
| 6. Requires x6 CBL-SAST-0531 | |||
| 7. Requires BKT-BBU-BRACKET-05 | |||
| 8. Optional BPN-SAS3-216EL1 Expander Backplane support. Will lose x2 U.2 NVMe support | |||
| Network and Cables | AOC-STG-i4S | 1 | 4 Port 10G SFP+ PCI-E x8 Ethernet card. Based on Intel X710-AMI |
| AOC-STG-i2T | 1 | 2 Port 10G RJ45 PCI-E x8 Ethernet card. Based on Intel X540 | |
| AOC-S25G-B2S | 1 | 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Broadcom BCM57414 | |
| AOC-S25G-M2S | 1 | 2 Port 25G SFP28 PCI-E x8 Ethernet card. Based on Mellanox ConnectX-4 LX EN | |
| AOC-MCX4121A-ACAT | 1 | 2 Port 25G SFP28 PCI-E X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN | |
| AOC-S40G-I1Q | 1 | 1 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 | |
| AOC-S40G-I2Q | 1 | 2 Port 40G QSFP+ PCI-E X8 Ethernet card. Based on Intel X710 | |
| AOC-MCX456A-ECAT | 1 | 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-4 VPI | |
| AOC-MCX556A-ECAT | 1 | 2 Port 100G QSFP28 PCI-E X16 EDR IB card. Based on Mellanox Connect-5 VPI | |
| CBL-NTWK-0944-MS28C30M | 1 | Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,3M,Mellanox | |
| CBL-NTWK-0944-MS28C20M | 1 | Ethernet Cable, SFP28,28GbE,PASSIVE,30 AWG,2M,Mellanox | |
| AOC-E10GSFPSR | 1 | Ethernet Transceiver, SFP+ 1000Base-SX / 10GBase-SR | |
| CBL-NTWK-0446-01 | 1 | Ethernet Cable, QSFP, 40GbE, PASSIVE, 28 AWG, 3M | |
| CBL-NTWK-0942-MQ28E20M | 1 | IB Cable, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M | |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
