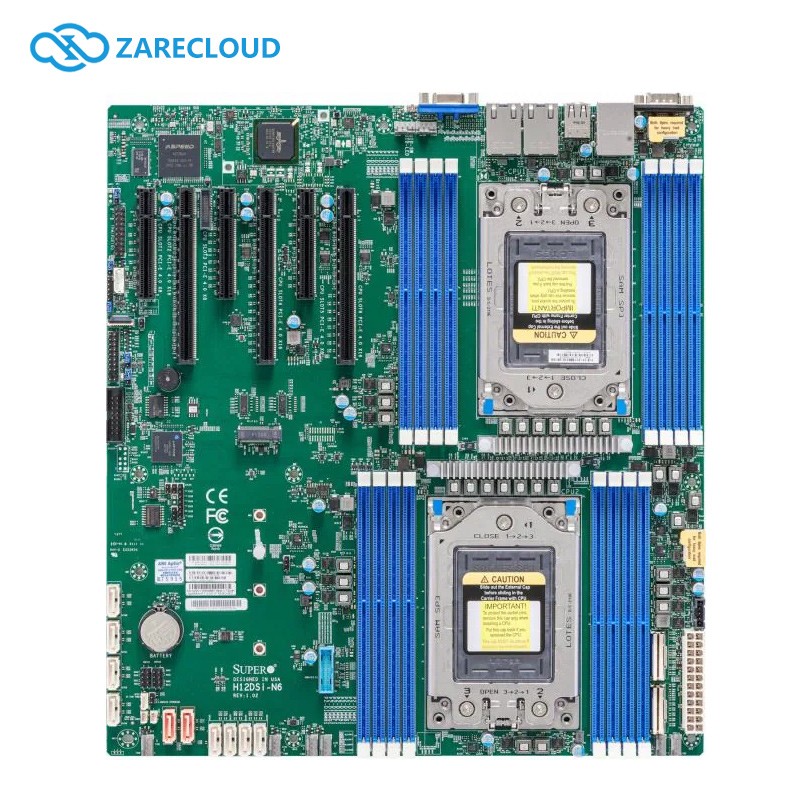

Key Features
1.Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2.4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
3.Expansion slots:
3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4.10 SATA3, 2 SATADOM, 4 NVMe
5.Dual Gigabit LAN ports,
1 dedicated IPMI LAN Port
6.ASPEED AST2600 BMC graphics
7.2 USB 2.0 ports (rear),
4 USB 3.0 ports (2 rear, 2 headers)
8.8x 4-pin PWM Fans & Speed control
| Specifications | |
| Product SKUs | |
| MBD-H12DSi-N6 | H12DSi-N6 |
| Physical Stats | |
| Form Factor | EATX |
| Dimensions | 12" x 13.05" (30.5cm x 33.1cm) |
| Processor/Chipset | |
| CPU | Dual AMD EPYC™ 7003/7002 Series Processors |
| (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | |
| Socket SP3 | |
| Cores | Up to 64 Cores |
| Chipset | System on Chip |
| System Memory | |
| Memory Capacity | 16 DIMM slots |
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM | |
| 8-channel memory bus | |
| For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks | |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) | |
| On-Board Devices | |
| SATA | SATA3 (6 Gbps) |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| ASPEED AST2600 BMC | |
| Network Controllers | Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller |
| VGA | ASPEED AST2600 BMC |

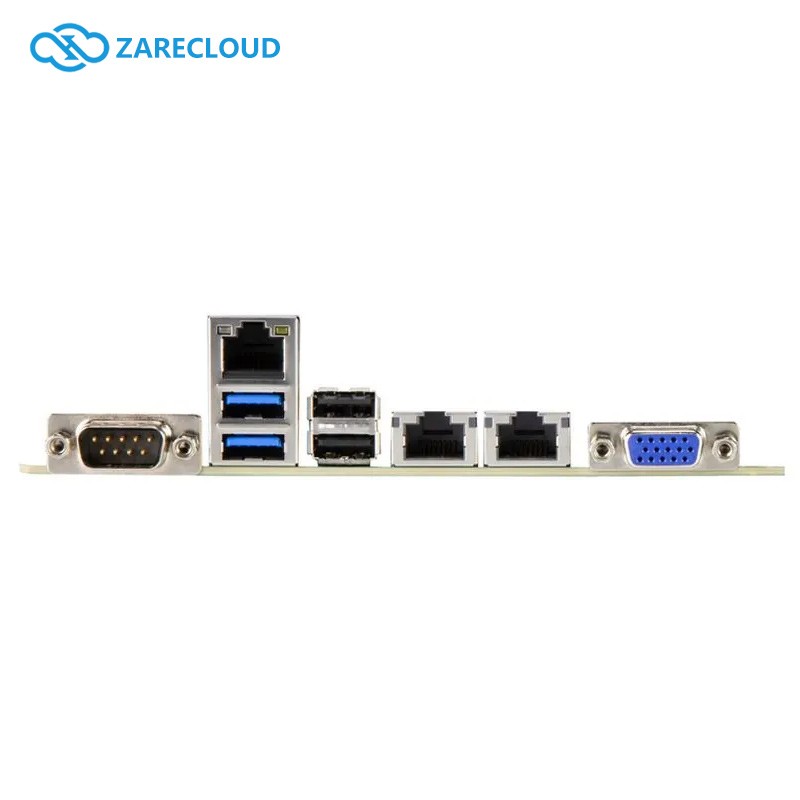

| Input / Output | |
| SATA | 10 SATA3 (6 Gbps) ports |
| LAN | 2x 1GbE LAN ports |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 2.0 ports (rear) |
| 4 USB 3.0 ports (2 rear, 2 headers) | |
| VGA | 1 VGA port |
| Others | 1 COM port (rear) |
| 2 SATA DOM power connectors | |
| 4 PCI-E 4.0 NVMe x4 internal ports | |
| TPM 2.0 header | |
| Expansion Slots | |
| PCI-Express | 3 PCI-E 4.0 x16 slots |
| 3 PCI-E 4.0 x8 slots | |
| M.2 | Interface: 1 PCI-E 4.0 x4 |
| Form Factor: 2280, 22110 | |
| Key: M-key | |
| Chassis ( Optimized for H12DSi-N6) | |
| 2U | SCLA25TQC-R609LP |
| SCLA26AC12-R920LP1 | |
| 3U | SC835TQC-R1K03B |
| Server(s) (with H12DSi-N6) | |
| Model(s) | AS -2024S-TR |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) |
| DMI 2.3 | |
| PCI 2.2 | |
| ACPI 6.2 | |
| USB Keyboard Support | |
| SMBIOS 3.1.1 | |
| Management | |
| Software | Super |
 Doctor 5 | |
| Watch Dog | |
| NMI | |
| SUM | |
| IPMI 2.0, KVM with dedicated LAN | |
| Power Configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery | |
| PC Health Monitoring | |
| CPU | Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby |
| CPU switching voltage regulator | |
| VBAT | |
| FAN | Up to 8 fan status tachometer monitoring |
| Up to 8x 4-pin fan headers | |
| Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment |
| CPU Thermal Trip Support | |
| Thermal control for 8x Fan connectors | |
| I²C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED |
| Other Features | Chassis Intrusion Detection |
| Chassis Intrusion Header | |
| Operating Environment / Compliance | |
| Environmental Specifications | Operating Temperature: |
| 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) | |
| Parts List | |||
| Bulk Pack List | |||
| Part Number | Qty | Description | |
| Motherboard | MBD-H12DSi-N6-B | 1 | H12DSi-N6 Motherboard |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O SHIELD |
| I/O Cables | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| Retail Pack List | |||
| Part Number | Qty | Description | |
| Motherboard | MBD-H12DSi-N6-O | 1 | H12DSi-N6 Motherboard |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O SHIELD |
| I/O Cables | CBL-0044L | 4 | 57.5CM SATA FLAT S-S PBF |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| TPM security module | AOM-TPM-9655V | - | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; |
| AOM-TPM-9665V | - | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | |
