Key Features
1.Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in
support requires board revision 2.x)
2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
3.Expansion slots:
2 PCI-E 3.0 x16
3 PCI-E 3.0 x8
M.2 Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor
only supports PCI-E type M.2 module)
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4.10 SATA3, 1 M.2, 2 SATA DOM
5.Dual 10GBase-T LAN Ports
6. ASPEED AST2500 BMC graphics
7.Up to 2 USB 3.0 ports
Up to 4 USB 2.0 ports
8. 8 4-pin PWM Fan & Speed control
| Specifications | |
| Product SKUs | |

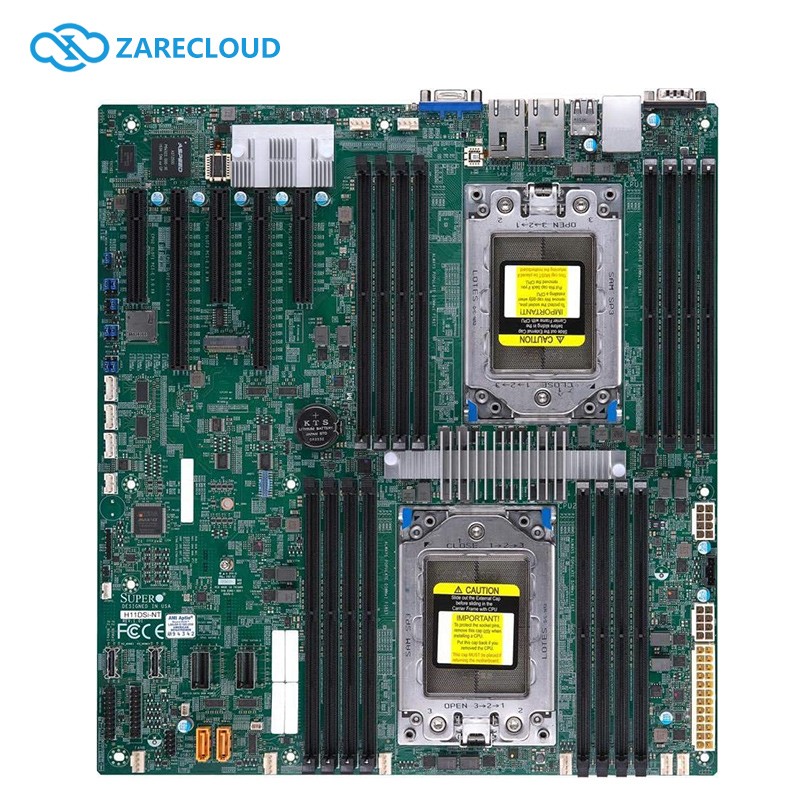

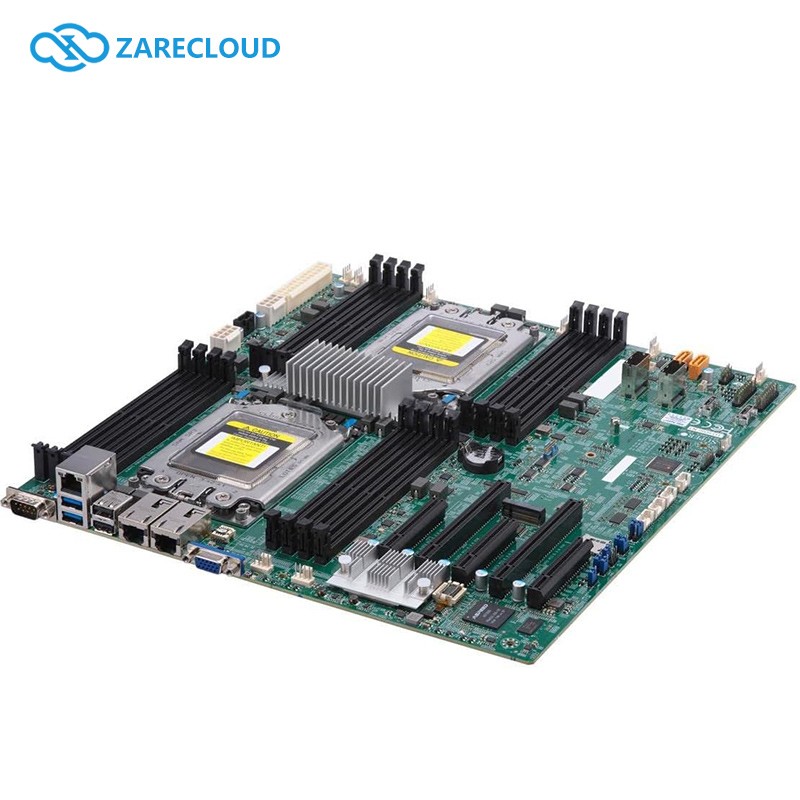

| MBD-H11DSi-NT | H11DSi-NT |
| MBD-H11DSi-NT-B | H11DSi-NT (Bulk Pack) |
| Physical Stats | |
| Form Factor | E-ATX |
| Dimensions | 12" x 13.05" (30.5cm x 33.1cm) |

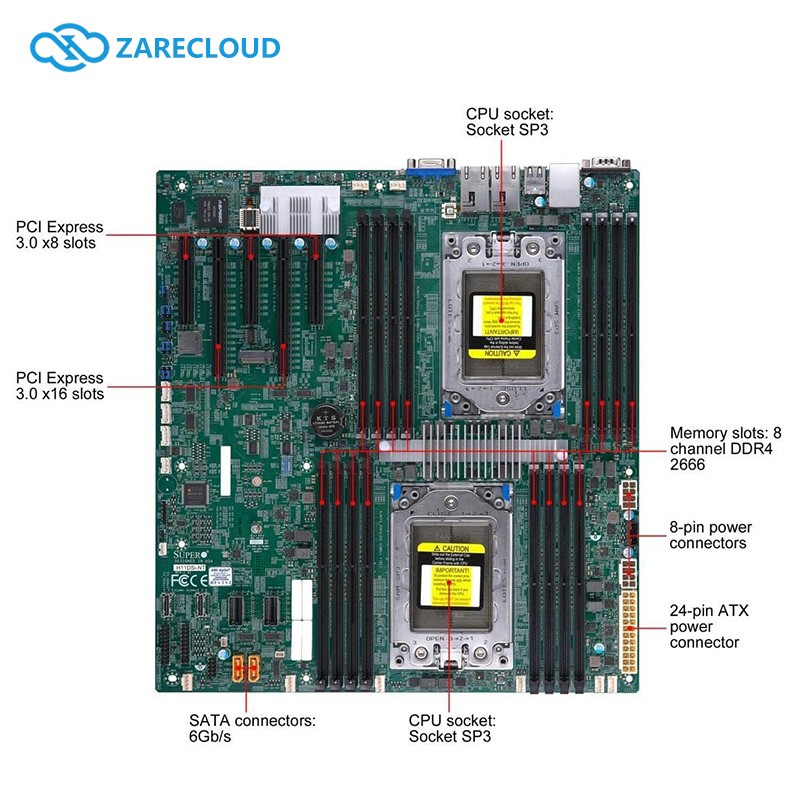

| Processor/Chipset | |
| CPU | Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required) |
| Socket SP3 | |
| Up to 240W TDP | |
| Cores | Up to 32 Cores |
| Up to 64 Cores (Board revision 2.x required) | |
| Chipset | System on Chip |
| System Memory | |
| Memory Capacity | 16 DIMM sockets |
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM | |
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required) | |
| 8-channel memory bus | |
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required) | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required) |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) | |
| On-Board Devices | |
| SATA | SATA3 (6 Gbps) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| ASPEED AST2500 BMC | |
| Network Controllers | Intel® X550 10G Base-T Ethernet Controller |
| 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| VGA | ASPEED AST2500 BMC |

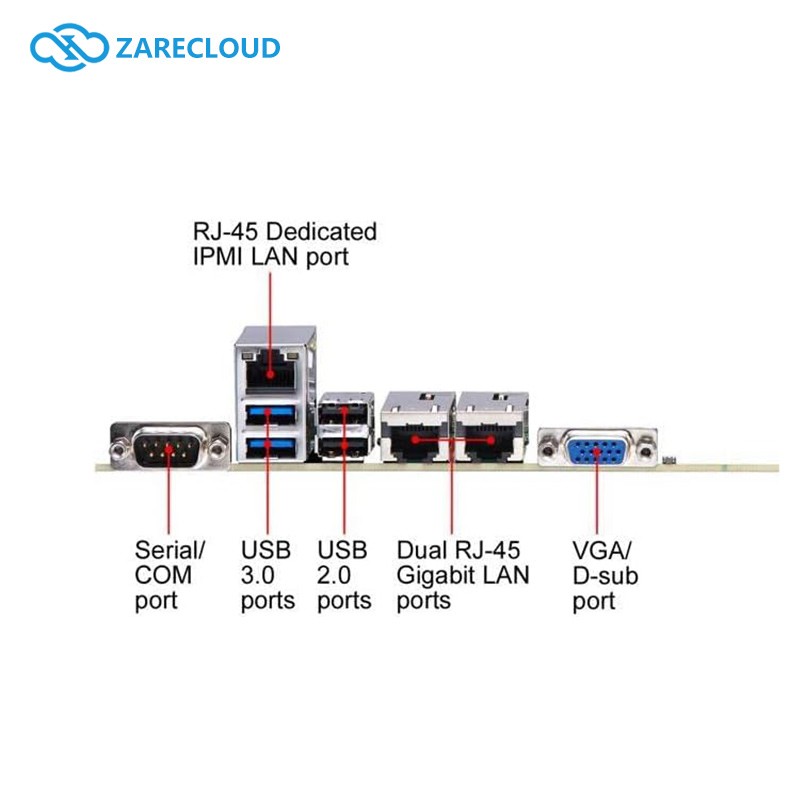

| Input / Output | |
| SATA | 10 SATA3 (6 Gbps) ports |
| NVMe | 2 Internal NVMe Ports (PCI-E 3.0 x4) |
| LAN | 2 RJ45 10GBase-T ports |
| 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) |
| 4 USB 2.0 ports (2 rear + 2 via header) | |
| VGA | 1 VGA port |
| Others | 1 COM port (rear) |
| 2 SATA DOM power connectors | |
| 1 TPM 2.0 header | |
| Expansion Slots | |
| PCI-Express | 3 PCI-E 3.0 x8 |
| 2 PCI-E 3.0 x16 | |
| M.2 | Interface: 1 SATA/PCI-E 3.0 x2 |
| (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) | |
| Form factor: 2280, 22110 | |
| Key: M-key | |
| Chassis ( Optimized for H11DSI-NT ) | |
| 2U | SC213AC-R1K23LPB |
| SC216BE1C4-R1K23LPB | |
| SC825TQC-R802LPB | |
| SC826BE1C4-R1K23LPB | |
| SC829HE1C4-R1K62LPB | |
| 3U | SC836BE1C-R1K23B |
| 4U | SC745BAC-R1K28B2 |
| SC846BE1C-R1K23B | |
| Server(s) ( with H11DSI-NT ) | |
| Model(s) | AS -4023S-TRT |
| System BIOS | |
| BIOS Type | AMI 128Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) |
| DMI 2.3 | |
| PCI 2.2 | |
| ACPI 5.1 | |
| USB Keyboard Support | |
| SMBIOS 3.1.1 | |
| Management | |
| Software | Super |
 Doctor 5 | |
| Watch Dog | |
| NMI | |
| SUM | |
| IPMI 2.0, KVM with dedicated LAN | |
| Power Configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery | |
| PC Health Monitoring | |
| CPU | Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby |
| CPU switching voltage regulator | |
| FAN | Up to 8-fan status tachometer monitoring |
| Up to eight 4-pin fan headers | |
| Dual Cooling Zone | |
| Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment |
| CPU Thermal Trip Support | |
| Thermal control for 8x Fan connectors | |
| I2C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED |
| Other Features | Chassis Intrusion Detection |
| Chassis Intrusion Header | |
| UID | |
| Operating Environment / Compliance | |
| Environmental Specifications | Operating Temperature: |
| 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) | |
| Parts List | |||
| Bulk Pack List | |||
| Part Number | Qty | Description | |
| H11DSI-NT | MBD-H11DSI-NT-B | 1 | H11DSI-NT Motherboard |
| I/O Cable | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O SHIELD FOR X9 SOCKET R SERVER MB |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| I/O Cable | CBL-0097L-03 | 2 | Ipass to 4 SATA, 51cm, W/51cm SB, S, 30AWG |
| TPM security module | AOM-TPM-9655V | - | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; |
| AOM-TPM-9665V | - | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | |
