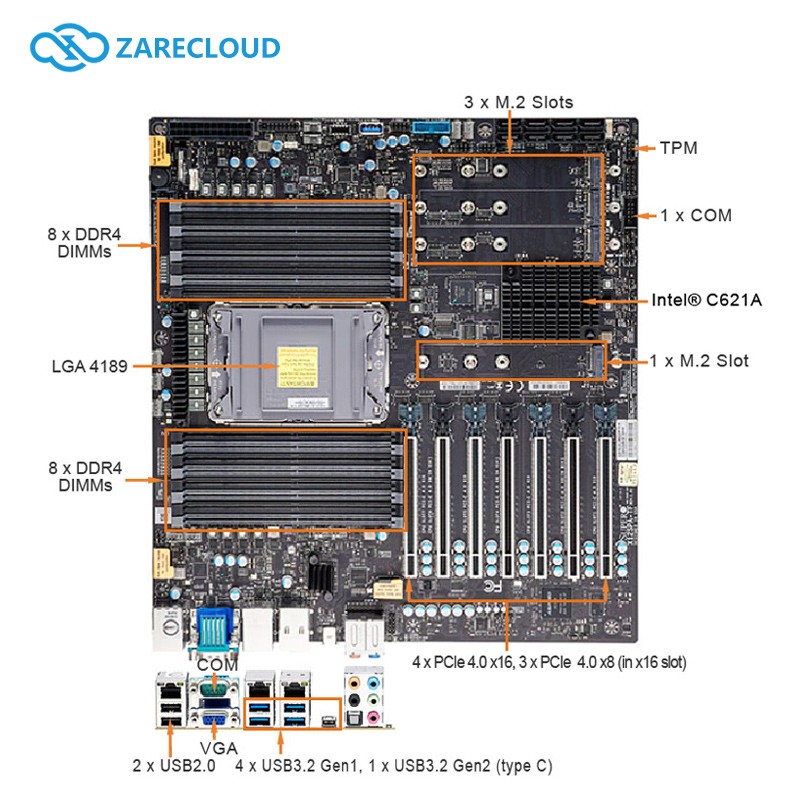

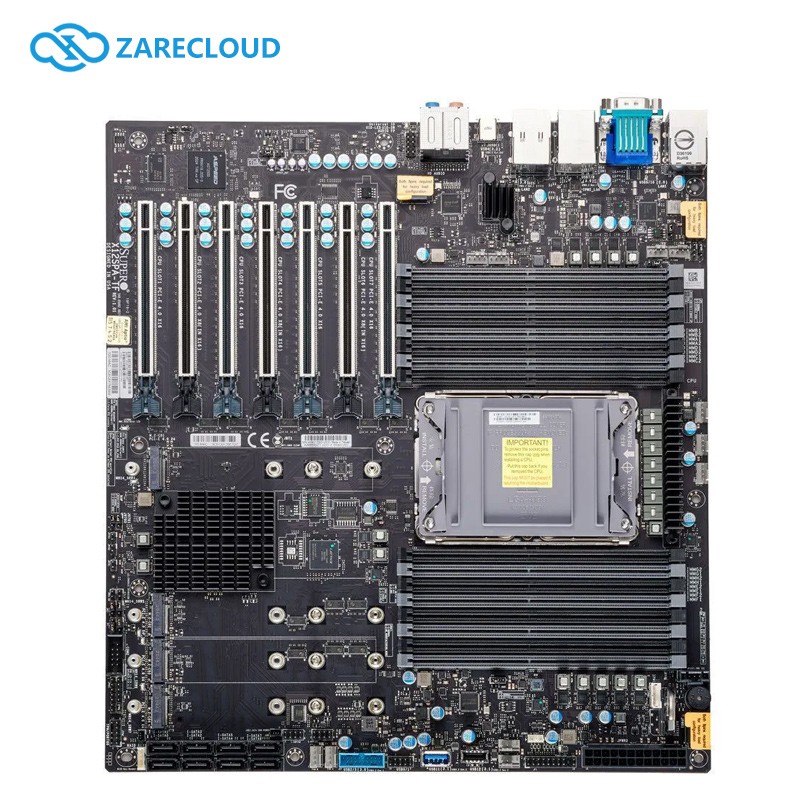

| Product SKUs |
| MBD-X12SPA-TF |
|
| Physical Stats |
| Form Factor | E-ATX |
| Dimension | 13" x 12" (33.02cm x 30.48cm) |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors, Intel® Xeon® W-3300 Processor |
| Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP |
| Core | Up to 40 cores |
| System Memory |
| Memory Capacity | 16 DIMM slots |
| Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz |
| Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz |
| Memory Type | ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® C621A |
| SATA | Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Audio | ALC 888S HD Audio |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| VGA connector is dedicated for IPMI. |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Realtek RTL8211F PHY (dedicated IPMI) |
| Single LAN with Marvell AQC113 |

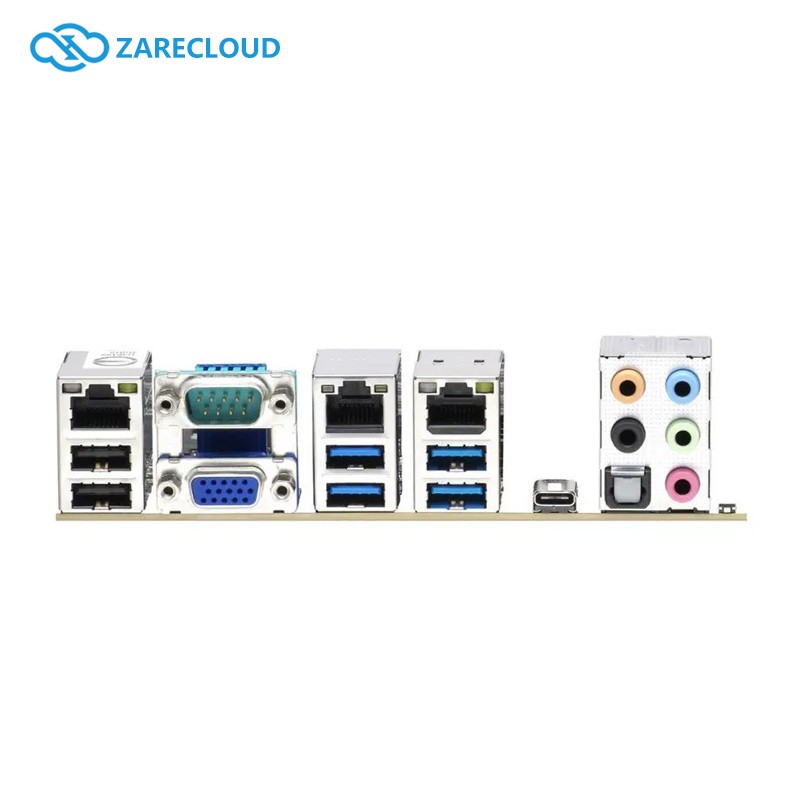

| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 1 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 10GBase-T ports |
| USB | 4 USB 2.0 port(s) (2 via header; 2 rear) |
| 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) |
| 1 USB 3.2 Gen2x2 port(s) (1 rear type C) |
| 2 USB 3.2 Gen2 port(s) (1 type A; 1 type C) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| DOM | 1 SATA DOM power connector (Disk on Module) port |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 4 PCIe 4.0 x16, |
| 3 PCIe 4.0 x8 (in x16 slot), PCIe x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8) |
| M.2 | M.2 Interface: 4 PCIe 4.0 x4 |
| Form Factor: 2260/2280/22110 |
| Key: M-Key |
| System BIOS |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| BIOS Features | ACPI 3.0 / 4.0 |
| SMBIOS 2.7 |
| PCI FW 3.0 |
| RTC (Real Time Clock) Wakeup |
| Management |
| Software | Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, Memory, HT, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 10 -fan status |
| LED | Suspend static indicator LED |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| PECI |
| FAN | 10x 4-pin fan headers (up to 10 fans) |
| PWM fan speed control |
| Fan speed control |
| Dual Cooling Zone |
| Status monitoring for speed control |
| Overheat LED indication |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
