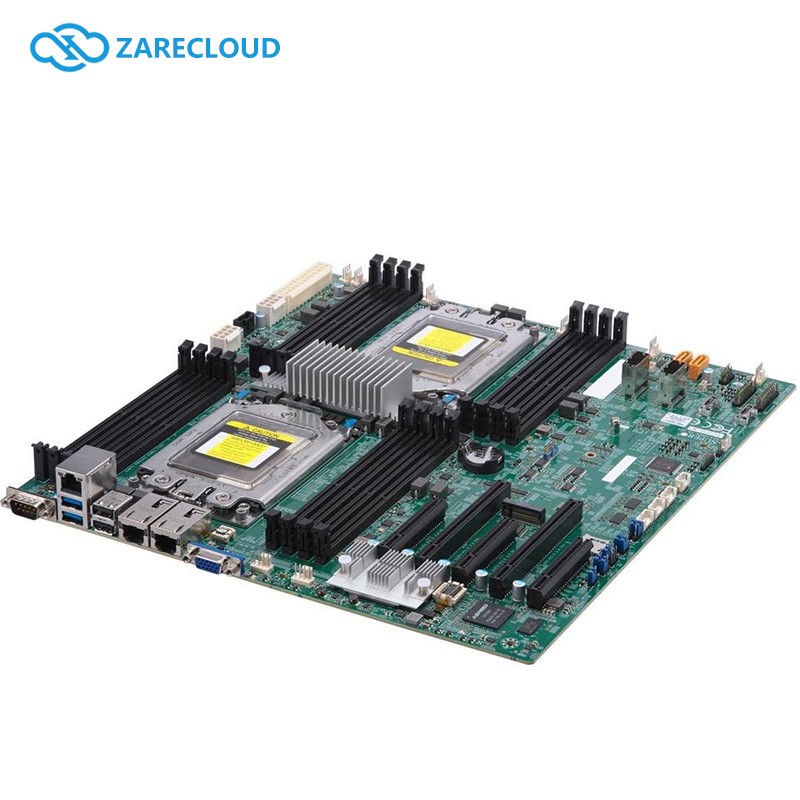

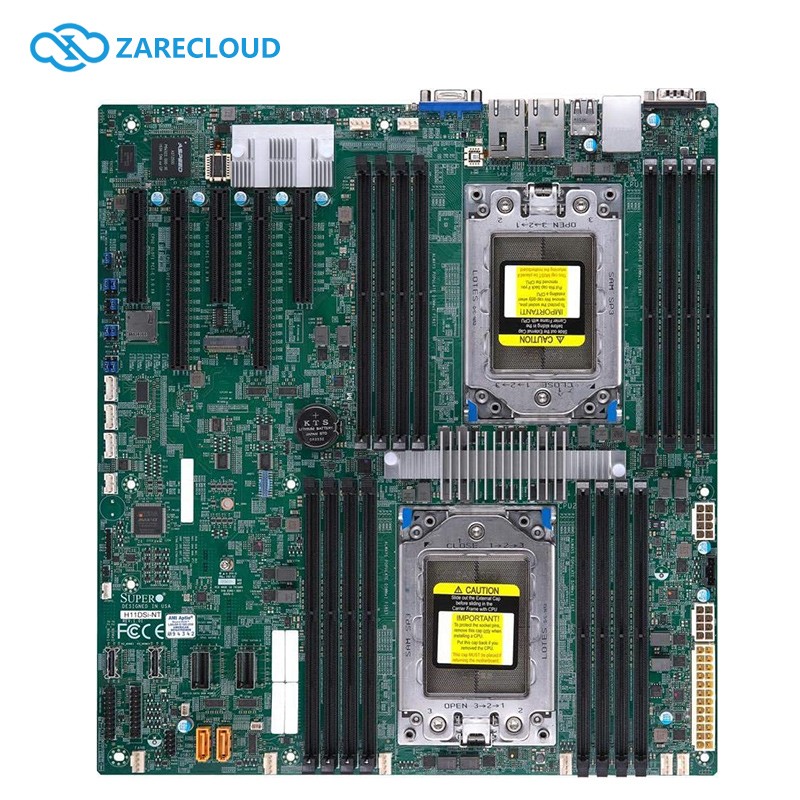

| Specifications |
|
|
| Product SKUs |
|
| MBD-H11DSi-NT | H11DSi-NT |
| MBD-H11DSi-NT-B | H11DSi-NT (Bulk Pack) |
|
|
| Physical Stats |
|
| Form Factor | E-ATX |
| Dimensions | 12" x 13.05" (30.5cm x 33.1cm) |
|
|
| Processor/Chipset |
|

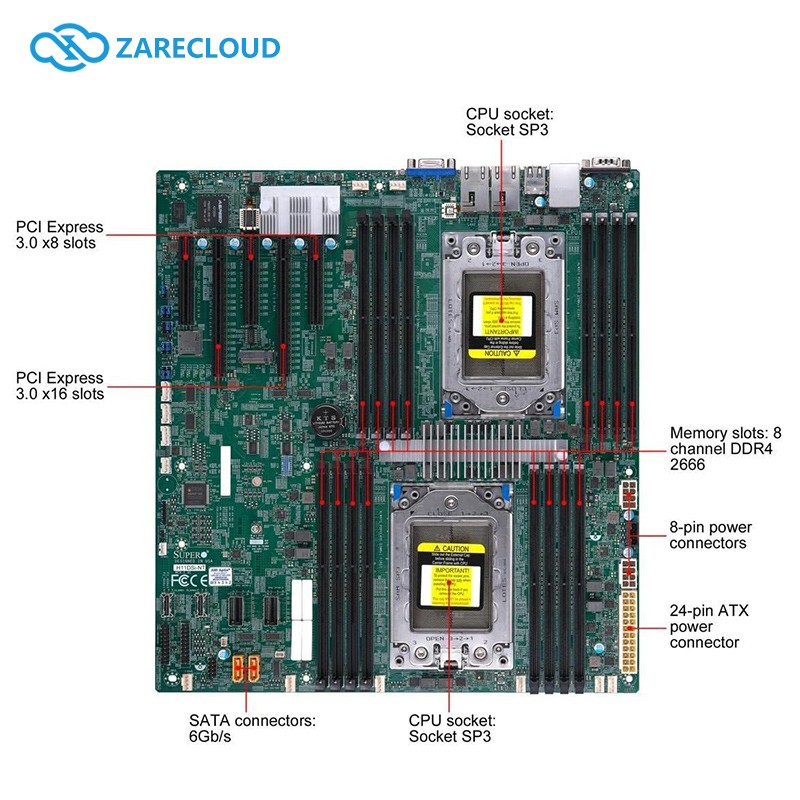

| CPU | Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required) |
| Socket SP3 |
| Up to 240W TDP |
| Cores | Up to 32 Cores |
| Up to 64 Cores (Board revision 2.x required) |
| Chipset | System on Chip |
|
|
| System Memory |
|
| Memory Capacity | 16 DIMM sockets |
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM |
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required) |
| 8-channel memory bus |
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required) |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required) |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
|
|
| On-Board Devices |
|
| SATA | SATA3 (6 Gbps) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2500 BMC |
| Network Controllers | Intel® X550 10G Base-T Ethernet Controller |
| 1 Realtek RTL8211E PHY (dedicated IPMI) |
| VGA | ASPEED AST2500 BMC |
|
|

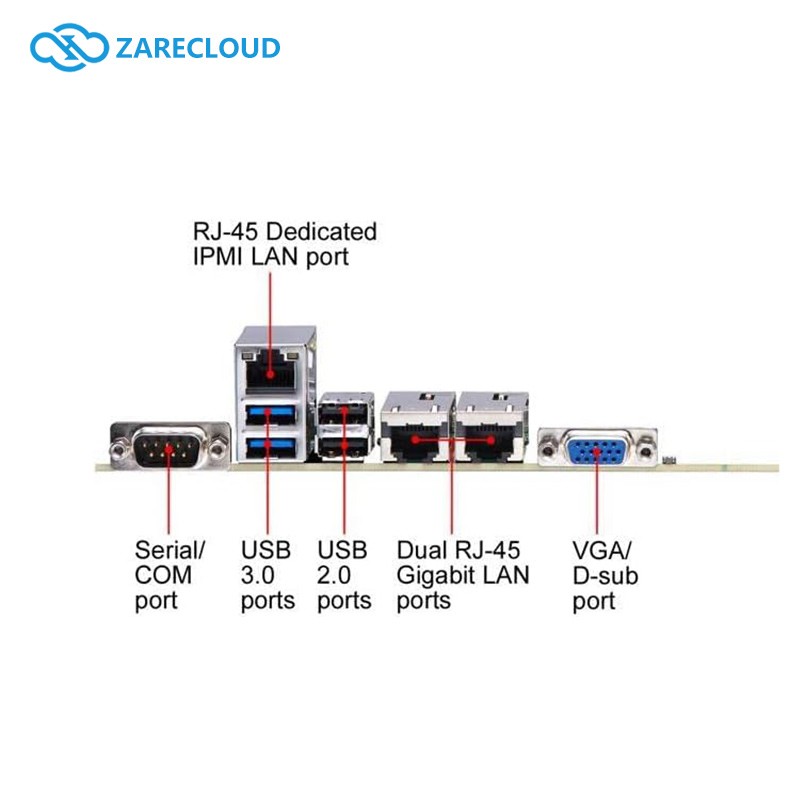

| Input / Output |
|
| SATA | 10 SATA3 (6 Gbps) ports |
| NVMe | 2 Internal NVMe Ports (PCI-E 3.0 x4) |
| LAN | 2 RJ45 10GBase-T ports |
| 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| 4 USB 2.0 ports (2 rear + 2 via header) |
| VGA | 1 VGA port |
| Others | 1 COM port (rear) |
| 2 SATA DOM power connectors |
| 1 TPM 2.0 header |
|
|
| Expansion Slots |
|
| PCI-Express | 3 PCI-E 3.0 x8 |
| 2 PCI-E 3.0 x16 |
|
| M.2 | Interface: 1 SATA/PCI-E 3.0 x2 |
| (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) |
| Form factor: 2280, 22110 |
| Key: M-key |
|
| Chassis ( Optimized for H11DSI-NT ) |
|
| 2U | SC213AC-R1K23LPB |
| SC216BE1C4-R1K23LPB |
| SC825TQC-R802LPB |
| SC826BE1C4-R1K23LPB |
| SC829HE1C4-R1K62LPB |
| 3U | SC836BE1C-R1K23B |
| 4U | SC745BAC-R1K28B2 |
| SC846BE1C-R1K23B |
|
|
|
| Server(s) ( with H11DSI-NT ) |
|
| Model(s) | AS -4023S-TRT |
|
|
| System BIOS |
|
| BIOS Type | AMI 128Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) |
| DMI 2.3 |
| PCI 2.2 |
| ACPI 5.1 |
| USB Keyboard Support |
| SMBIOS 3.1.1 |
|
|
| Management |
|
| Software | Super |
 Doctor 5 |
| Watch Dog |
| NMI |
| SUM |
| IPMI 2.0, KVM with dedicated LAN |
| Power Configurations | ACPI Power Management |
| Power-on mode control for AC power loss recovery |
|
|
| PC Health Monitoring |
|
| CPU | Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby |
| CPU switching voltage regulator |
| FAN | Up to 8-fan status tachometer monitoring |
| Up to eight 4-pin fan headers |
| Dual Cooling Zone |
| Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| CPU Thermal Trip Support |
| Thermal control for 8x Fan connectors |
| I2C Temperature Sensing Logic |
| LED | CPU / System Overheat LED |
| Other Features | Chassis Intrusion Detection |
| Chassis Intrusion Header |
| UID |
|
|
| Operating Environment / Compliance |
|
| Environmental Specifications | Operating Temperature: |
| 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: |
| -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: |
| 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: |
| 5% to 95% (non-condensing) |
|
|
