| Product SKUs |

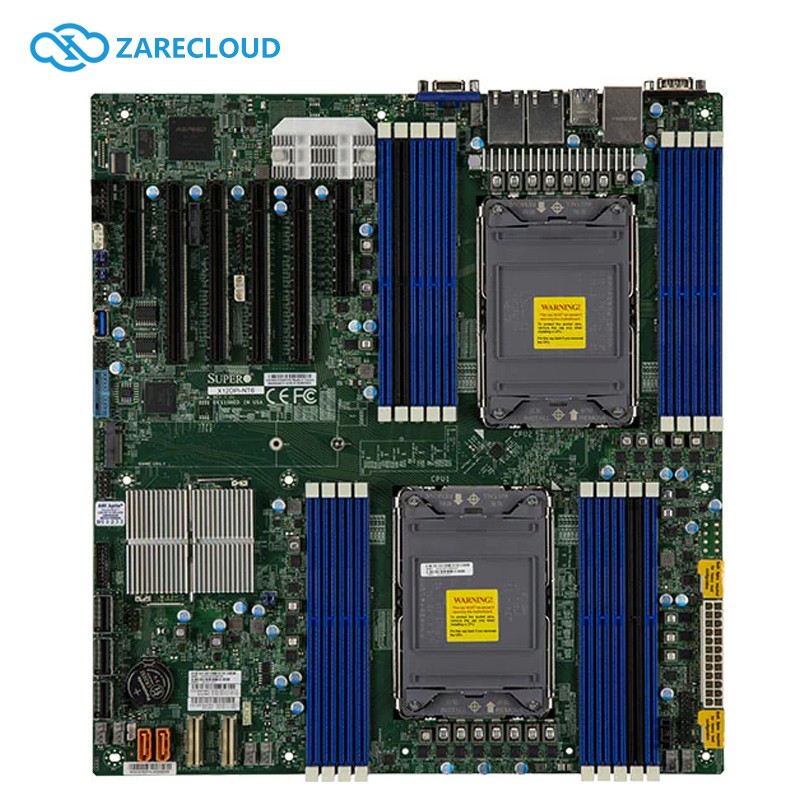

| MBD-X12DPi-N6 |
|
| Physical Stats |
| Form Factor | E-ATX |
| Dimension | 12" x 13" (30.48cm x 33.02cm) |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s |
| Core | Up to 40 cores |
| System Memory |
| Memory Capacity | 18 DIMM slots |
| Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz |
| Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz |
| P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. |
| Memory Type | 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| DIMM Sizes | LRDIMM: 256GB |
| RDIMM: 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C621A |
| SATA | Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Intel® i350 Gigabit Ethernet Controller |

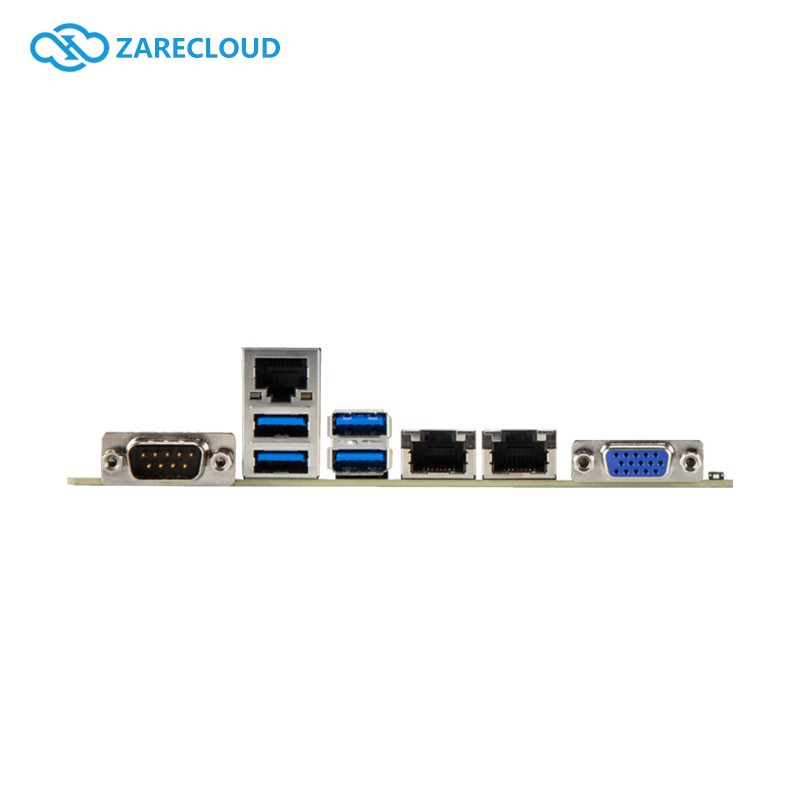

| Input / Output |
| SATA | 14 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 2.0 port(s) (2 via header) |
| 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A) |
| Video Output | 2 VGA (1 rear bezel, 1 front panel) port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCIe | 4 PCIe 4.0 x16, |
| 2 PCIe 4.0 x8 |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4 |
| Form Factor: 2280/22110 |
| Key: M-Key |
| System BIOS |
| BIOS Type | AMI UEFI |
| Management |
| Software | Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
| System Management Software | SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status |
| LED | UID/Remote UID |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| PECI |
| FAN | 8x 4-pin fan headers (up to 8 fans) |
| PWM fan speed control |
| Other Features | WOL, UID, RoHS, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, SDDC, RoT, NCSI header |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
