Home > Products > Server > supermicro
SYS-741GE-TNRT SYS-741GE-TNRT SYS-741GE-TNRT SYS-741GE-TNRT

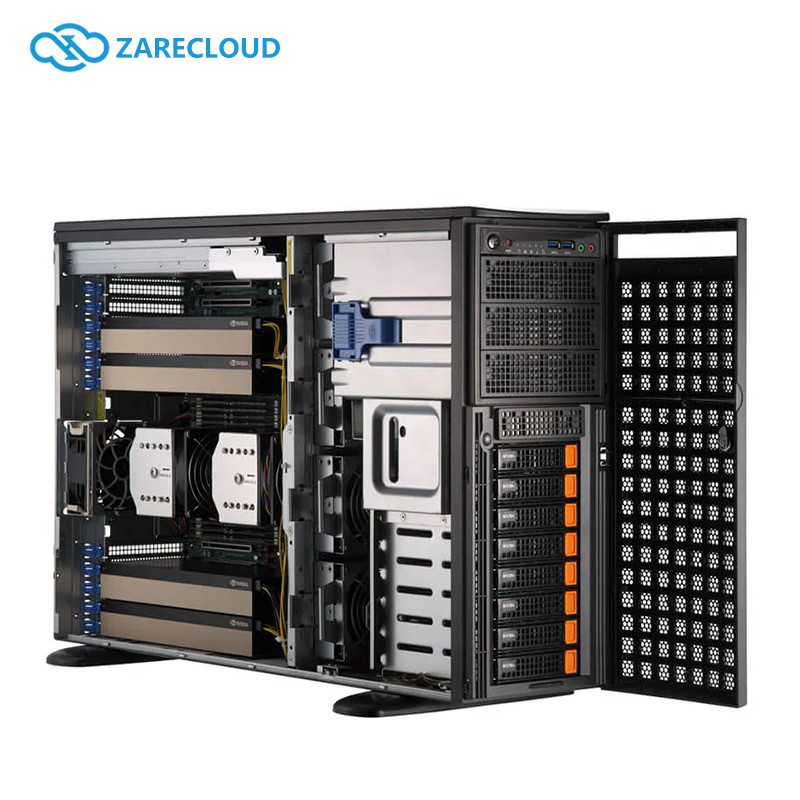

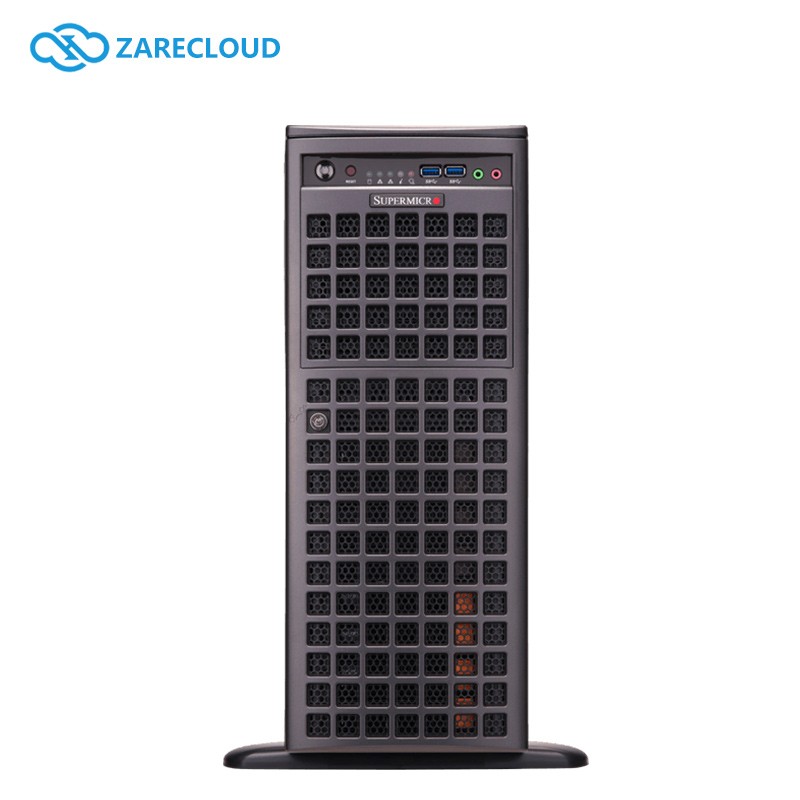

SYS-741GE-TNRT

Key Applications：
•High Performance Computing
•VDI
•AI/Deep Learning Training
•Media/Video Streaming
•Cloud Gaming
•Animation and Modeling
•Design & Visualization
•3D Rendering
•Diagnostic Imaging
•AI Training
Key Features:

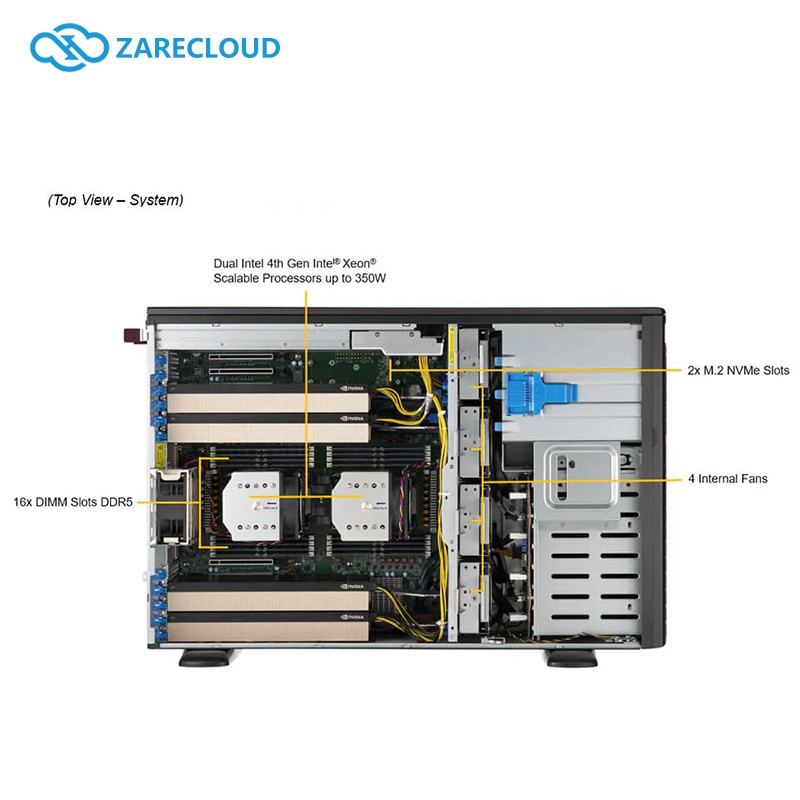

1.5th/4th Gen Intel® Xeon® Scalable processor support
2.16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5

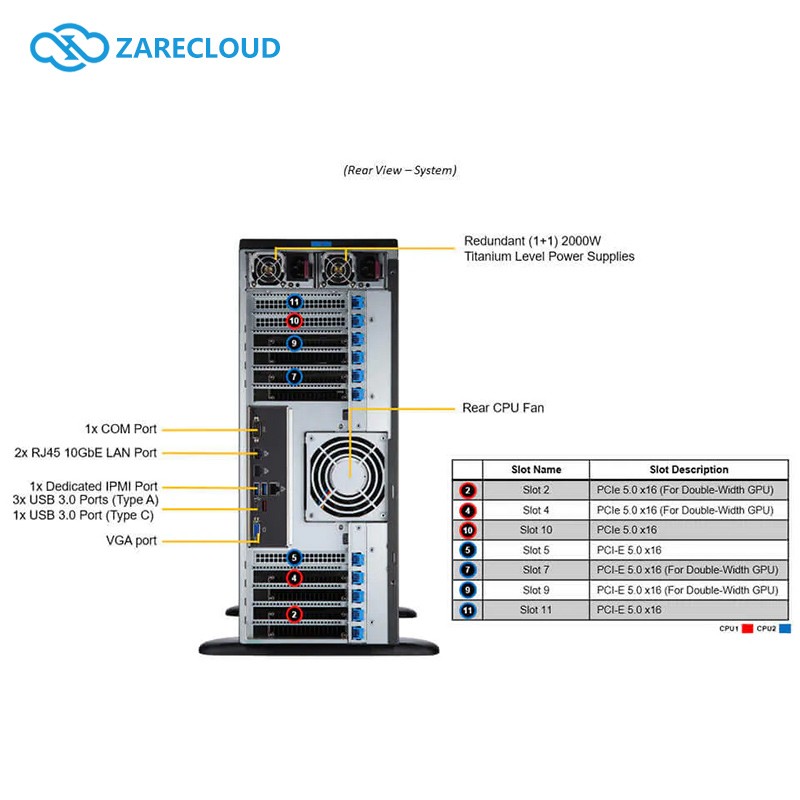

3.Up to 4x double width, full length GPUs
4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
4.Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
2x M.2 NVMe for boot drive only
Up to 8x NVMe drives (8 NVMe drives supported by default)
5.4 Removable heavy duty fans w/ Optimal Fan Speed Control
6.2x 2000W (1+1) Redundant Power Supplies, Titanium Level

EMAIL









Standard Parts (Parts Included)

Part NumberQtyDescription
Motherboard / ChassisMBD-X13DEG-QT

CSE-749TS-R2K05BP		1

1		Super X13DEG-QT Motherboard

Tower Chassis
BackplaneBPN-NVME5-749N-S818-port 3.5" LFF direct-attached HDD SAS4/NVMe Gen5 backplane for 4U SC749 Tower, all ports support 32GT/s NVMe Gen5 and/or 24Gb/s SAS4.,RoHS
CableCBL-MCIO-1240M5L4MCIOx8 (STR_pTab to LE), 40cm,30AWG,RoHS
CBL-PWEX-1142B-401MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
CBL-SAST-1230-1002Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CBL-0160L2US POWER CORD 16AWG, PB FREE
CBL-PWEX-10785PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
PartsMCP-260-00180-0B1STD I/O Shield for X13DEG-QT with EMI Gasket & Black Mylar
MCP-290-74701-0B1Black plastic top cover for SC747
MCP-290-74703-0B1fixed 3.5" dummy cover for SC747
MCP-290-74709-0B1Plastic feet (2 pcs/set) for 4U tower chassis, black color
SoftwareSFT-OOB-LIC1License key for enabling OOB BIOS management
Heatsink / RetentionSNK-P0090AP424U Active CPU HS for X13 Gen. Intel Eagle Stream Platform
*Power SupplyPWS-2K05A-1R21U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
*Power DistributorPDB-PT747-DSG14U 4GPU support redundancy 2PWS up to 3KW output pass thr
*FanFAN-0199L4-1192x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
FAN-0199L4-2492x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
*Front BezelMCP-210-74701-0B1SC747 plastic front bezel
*Drive Tray(s)MCP-220-00073-0B3Black 5.25 drive tray w/o rail (SC747)
MCP-220-00150-0B8NVMe Panetone 159C on Latch
*Front PanelMCP-280-74702-0N1SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
Notes:

  1. Parts with * are inside the chassis

  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

<td class="spec border_br" width="50" background="https://www.supermicro.org.cn/en/products/system/gpu/tower/sys-741ge-tnrt?_gl=1*qpxbhr*_ga*Mzg0MTA4ODA1LjE3MDkxMDA1NDg.*_ga_K1TNNPLV4M*MTcwOTI4OTYyNS4xMC4xLjE3MDkyOTUyNTMuMzQuMC4w" style="box-sizing: border-box; color: rgb(0, 51, 153); border-width: initial; border-style: none; border-color: initial; line-he

Optional Parts List

Part NumberQtyDescription
DVD KitCBL-0044L •1SATA CABLE 57.5CM FLAT SS PBF.26AWG flat
CBL-PWEX-0947Y-301MicroFit 2x2,PH3.0 to 2 1X4,PH5.08,30cm,9.5A/pin,16AWG,RoHS
DVM-TEAC-DVDRW24-HBT1BLACK TEAC 5.25" HH 24X DVD-RW SATA DRIVE
CBL-0082L •1Y SPLIT SATA POWER ADAPTER, PB FREE
Front BezelMCP-210-74703-0B1Front bezel cover (for 5.25" bay) for rackmount
GPU KitMCP-320-74901-NN1SC749 chassis rear external fan for passive GPU cooling kit
Mounting RailsMCP-290-00059-0B •<a href=
