| Product SKUs |

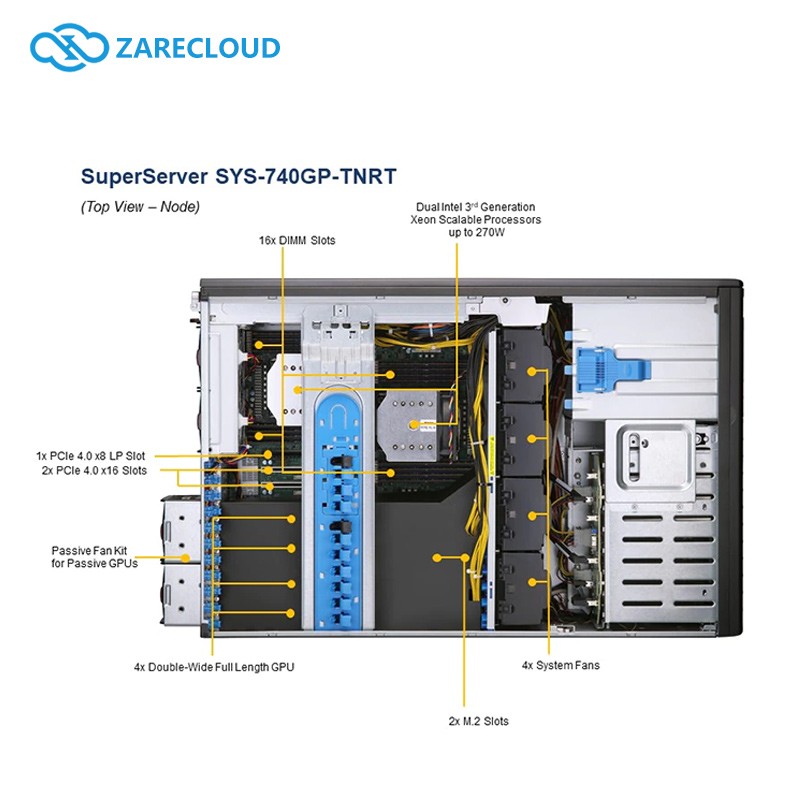

| SuperServer SYS-740GP-TNRT |
| Motherboard |
| Super X12DPG-QT6 |
| Processor |
| CPU | Dual Socket P+ (LGA-4189) |
| 3rd Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 4 double-width or 6 single-width GPU(s) |
| Supported GPU | NVIDIA PCIe: A40, RTX A5000, RTX A4000, A30, A100, RTX A6000, RTX A4500, A40, A16, A10 |
| View GPU Options |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| Certification |  |
|
| System Memory |
| Memory | Slot Count: 16 DIMM slots |
| Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Supports Intel® Optane™ persistent memory 200 series |
| View Memory Options |
| Memory Voltage | 1.2V |
| On-Board Devices |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2 |
| View AOC Options |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| NVMe | View NVMe Options |
| Input / Output |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Redfish API |
| Supermicro Server Manager (SSM) |
| Supermicro Power Manager (SPM) |
| Supermicro Update Manager (SUM) |
| SuperDoctor® 5 |
| Super Diagnostics Offline |
| KVM with dedicated LAN |
| IPMI 2.0 |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 7 +1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring |
| Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |

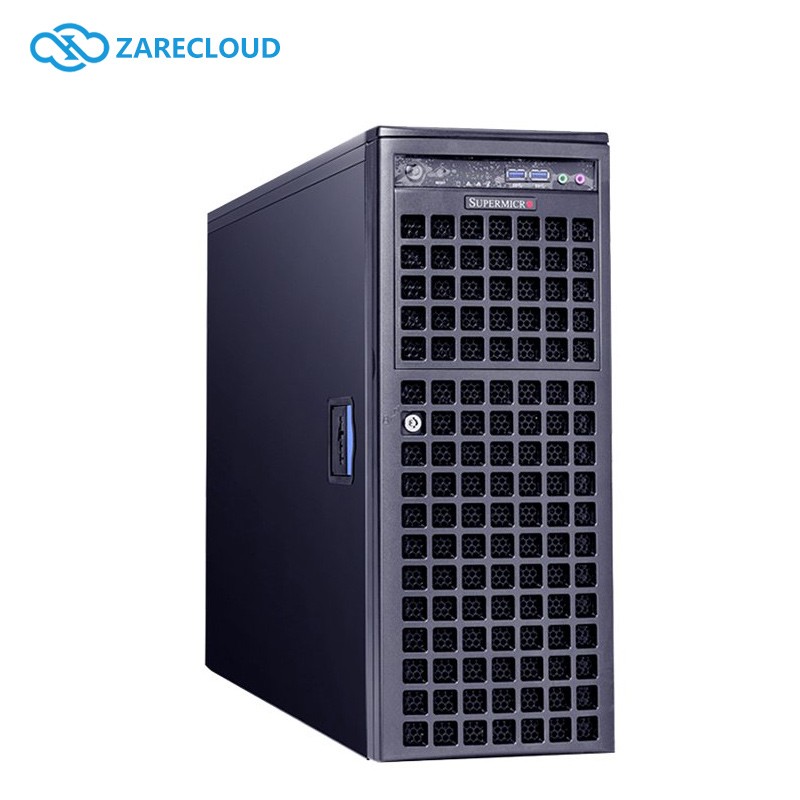

| Chassis |
| Form Factor | Full-Tower |
| Model | CSE-747BTS-R2K20BP |
| Dimensions and Weight |
| Height | 18.1" (460 mm) |
| Width | 7" (178 mm) |
| Depth | 26.5" (673 mm) |
| Package | 12.7" (H) x 27" (W) x 37.5" (D) |
| Weight | Gross Weight: 57 lbs (25.85 kg) |
| Net Weight: 52.9 lbs (24 kg) |
| Available Color | black |
| Front Panel |
| LED | HDD activity |
| Network activity |
| Power On |
| System Overheat / Fan Fail LED |
| Buttons | Power On/Off |
| System Reset |
| Expansion Slots |
| PCI-Express (PCIe) Configuration | Default |
| 4 PCIe 4.0 x16 FHFL slot(s) |
| 2 PCIe 4.0 x16 LP slot(s) |
| 1 PCIe 4.0 x8 LP slot(s) |
| View AOC Options |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 8 bay(s) |
| 4 front hot-swap 3.5" SAS/SATA drive bay(s) |
| 4 front hot-swap 3.5" NVMe/SAS/SATA drive bay(s) |
| View Drive Options |
| M.2 | 2 M.2 NVMe/SATA slot(s) (M-key) |
| View M.2 Options |
| Peripheral Bays | 3 5.25" peripheral bay(s) |
| System Cooling |
| Fans | 4 heavy duty fans with optimal fan speed control |
| Power Supply |
| 2200W Redundant Titanium Level power supplies |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| +12V | Max: 100A / Min: 0A (100Vac-127Vac) |
| Max: 150A / Min: 0A (200Vac-220Vac) |
| Max: 165A / Min: 0A (220Vac-230Vac) |
| Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) |
| Max: 174.17A / Min: 0A (230Vac-240Vac) |
| Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) |
| Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) |
| 5V SB | Max: 1A / Min: 0A |
| AC Input | 1200W: 100-127Vac / 50-60Hz |
| 1800W: 200-220Vac / 50-60Hz |
| 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) |
| 1980W: 220-230Vac / 50-60Hz |
| 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) |
| 2090W: 230-240Vac / 50-60Hz |
| 2090W: 230-240Vdc / 50-60Hz (for CCC only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
